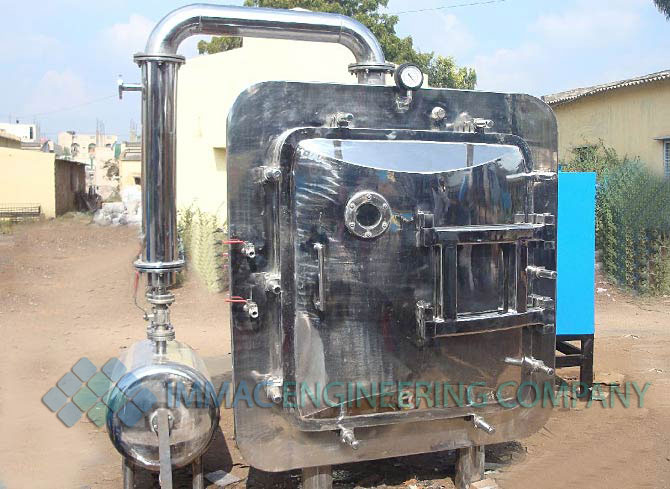

ABOUT VACUUM TRAY DRYER
- Availability : from 48 Trays to 96 Trays,
- Model : VACUUM TRAY DRYER

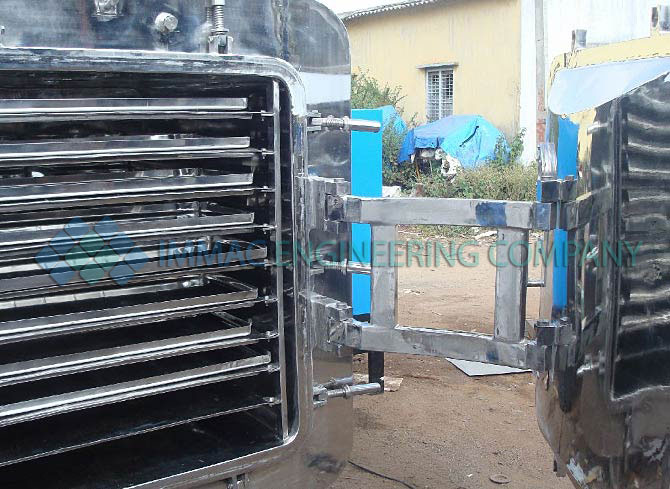

Vacuum Tray Dryer is used to dry temperature sensitive materials under vacuum atmosphere in static type of dryer. Vacuum Tray Dryer ensures complete vaporization of moisture and drying of the product. Vacuum Tray Dryer is normally used to dry pharmaceutical and allied products. They are box-shaped and loaded and unloaded via a door (two doors on the larger models). Inside are several heating plates mounted one above the other on which the product is placed in trays.
The bottoms of both heating plates and trays should be as smooth as possible to permit optimal heat transfer between plates and product. Static vacuum dryer eliminates the configuration damage of the drying materials therefore widely used in pharmaceutical, chemicals and foodstuff etc.
SALIENT FEATURES of VACUUM TRAY DRYER
Main Body made of thick SS 316 plate
Door thick SS 316 plate consisting heavy duty SS 316 flange
Trays(without back folding) in SS 316

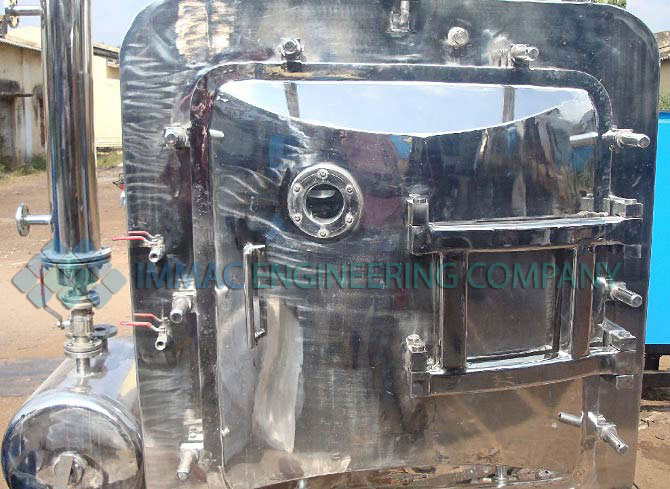

Glass view provided on door and receiver
Digital Temperature Indicator(FLP) at H.W. Inlet and Outlet
Digital Temperature Indicator(FLP) at vacuum line
Dail type vacuum gauge in vacuum line
Dail type Temperature gauge in body
Vacuum break valve provided in vacuum line
-
Silicon transparent gasket for door
Nitrogen purging valve provided on vacuum chamber
Can be designed to customers specification requirements
Steam sterilisable models available
Double door loading available for large models
-
Temperature Accuracy : ± 2 - 30c
-
Construction and finish as per cGMP standards.
OPTIONAL
Condenser and receiver are made in SS 316
50 mm thick glass wool insulation on the vacuum chamber outer surface except door
Hot water system (Steam heated) with MS tank (insulated), SS304 steam Radiator/Electrical heaters, Circulation pump with FLP Motor and controls.
